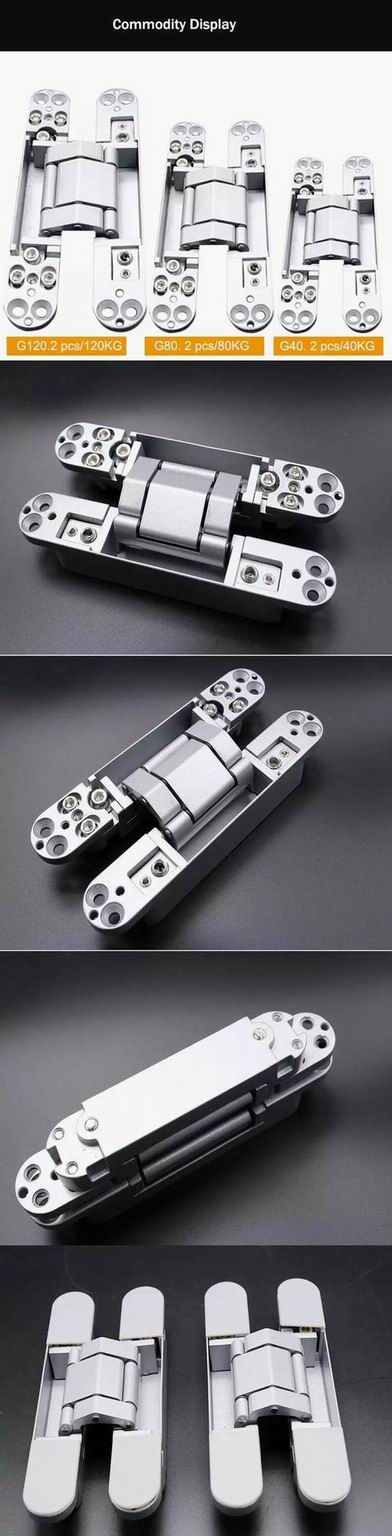

G80 Hiding door hinge
Features
For wooden doors
For flush doors
Concealed installation
Adjutable after installed

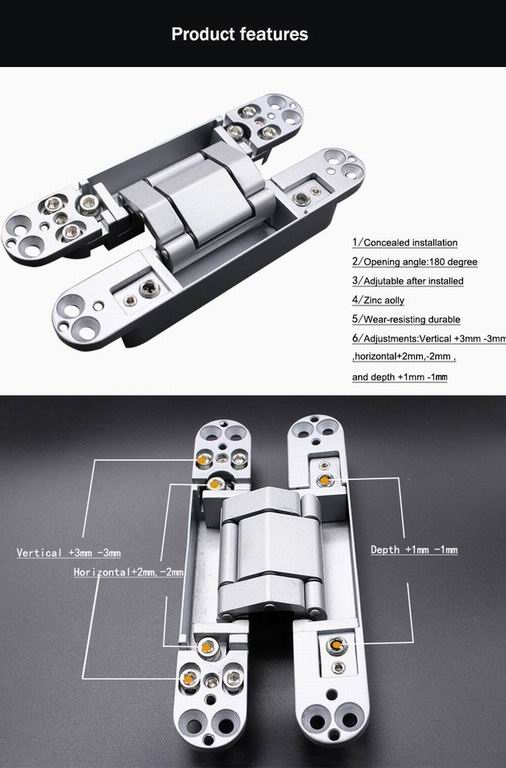

Adjustments:
Vertical +3mm -3mm ,horizontal+2mm,-2mm ,and depth +1mm -1mm

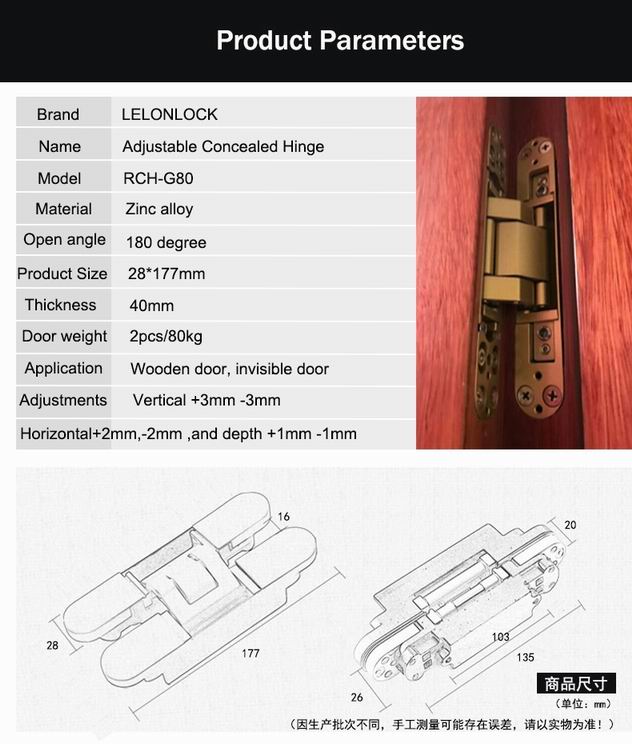

Opening angle:180 degreeTechnical data:
Max.door weight with 2hinges 40kg
Min.door thickness 35mm
Max.door width 850mm
Slim design for thin door 21mm
Materials: Zinc Alloy,Alum

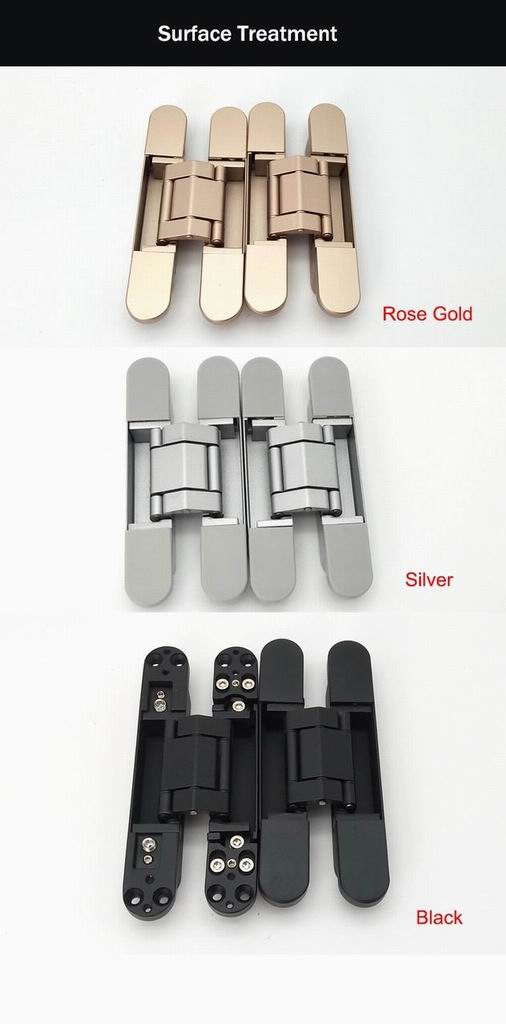

Finishes :Chrome ,Nickle ,Brass and Painting
Installation : wood tapping screws, Iron screws(optional)
Note
Finger protection due to small gap between door and frame
Application
Completely concealed for flush door with wood steel or aluminum frame
